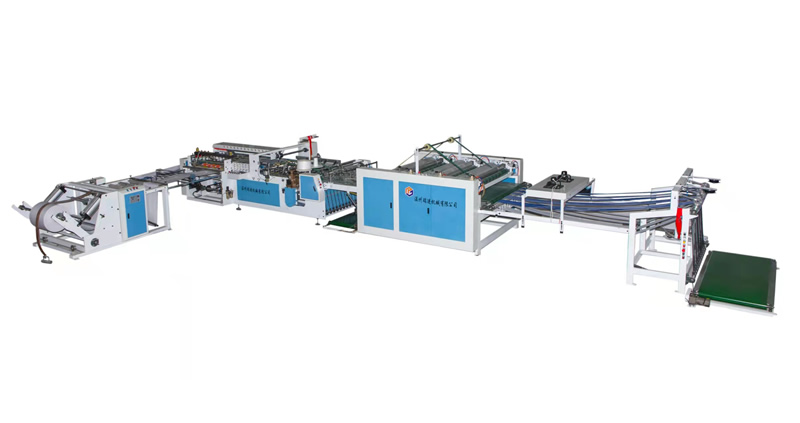

Automatic slitting and printing machine


Product Overview
1. The machine adopts automatic device plc control, touch screen operation and servo drive. Both cold knives and hot knives are made of imported materials. The hot knife is durable and practical, does not deform when heated, and is smoke-free and environmentally friendly (hot-cut with automatic rubbing, and the bag mouth does not stick).
2. Equipped with automatic feeding, air expansion shaft, magnetic powder expansion force (optional), automatic deviation correction, tracking and fixed length, automatic counting, batch delivery, disconnection shutdown and fault alarm.
3. The printing adopts frequency conversion synchronous control, and the advanced anilox roller transfers ink to achieve uniform ink transfer and full color. Reasonable structure, simple adjustment operation and convenient maintenance.
4. One machine is multi-purpose, one-man operation, optional ventilation holes and portable holes.


Main technical parameters

Cylinder Diameter ≤1200mm
Cut bag width 200-800mm
Cut Bag Length ≤1300mm
Bag cutting speed 32-65/min
Bag cutting accuracy Soil 1mm
Net Weight 3T
Installation Dimensions (L)10600*(W)5200*(H)1500mm
