Features

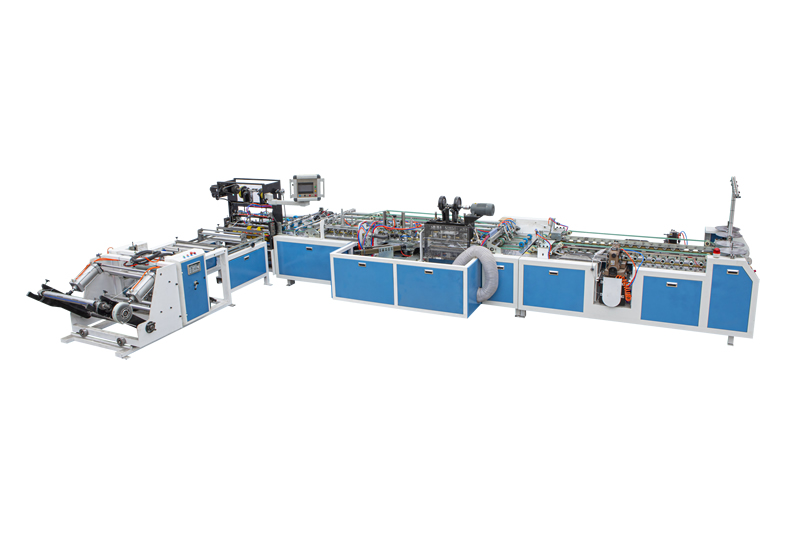

1. This machine adopts automatic device plc control, touch screen operation, servo drive, and cold cutting or hot cutting models can be selected.
2. Folding part: using servo operation, the folding size is uniform and flat. The incision knife is made of imported materials, the hot knife does not deform, realizes smoke-free environmental protection, the bag mouth is adhered, and the stitching is smooth.
3. Hot cutting knife: imported material, durable and practical.
4. The specifications of the folding mouth can be easily adjusted, and the length of the bag can be adjusted with one click.
5. Automatic feeding, automatic deviation correction, automatic benchmarking, automatic counting, batch delivery, disconnection alarm, fault and automatic stop of the connector
6. This machine is suitable for: ordinary non-laminated seven-character valve bags, color-printed seven-character valve bags, etc.

Cylinder Diameter	≤1200mm
Finished bag cutting width	300-550mm
Finished bag cutting length	500-920mm
Bag cutting speed	30-40 pieces/min
Bag cutting accuracy	±1mm
Total Power	16KW
Installation Dimensions	(L)) 10800*(W) 5000*(H) 1400mm
