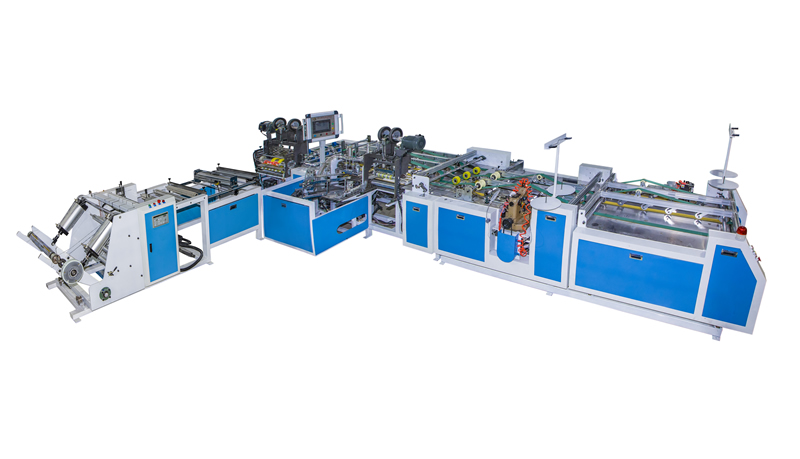

Valve pocket cutting and creasing machine


Features
1. This machine adopts automatic device plc control, touch screen operation, servo drive, and cold cutting or hot cutting models can be selected.
2. Folding part: using servo operation, the folding size is uniform and flat. The incision knife is made of imported materials, the hot knife does not deform, realizes smoke-free environmental protection, the bag mouth is adhered, and the stitching is smooth.
3. Cold cutting knife: imported material, durable and practical.
4. The specifications of the folding mouth can be easily adjusted, and the length of the bag can be adjusted with one click.
5. Automatic feeding, automatic deviation correction, automatic benchmarking, automatic counting, batch delivery, disconnection alarm, fault and automatic stop of the connector
6. This machine is suitable for: ordinary seven-character valve pockets, color-printed seven-character valve bags, etc.


Cylinder Diameter

≤1200mm

Finished bag cutting width

300-550mm

Finished bag cutting length

500-920mm

Bag cutting speed

35-40 pieces/min

Bag cutting accuracy

±1mm

Total Power

16KW

Installation Dimensions

(L) 9100*(W) 5000*(H) 1400mm
